Mount
Clean the surface and secure Xhour to a vibration-active area using adhesive or screws.
XHOUR
Digital vibration-activated hour meter
Run the machine.
Know the hours.
Xhour is a digital vibration hour meter that senses machine operation and records runtime automatically, with no machine wiring or external power connection.
01 SENSES VIBRATION
Auto sensing
Runtime logged
02 RECORDS RUNTIME
SIZE80 × 38 × 22 mm
BATTERY LIFE1-3 years
DISPLAYHHHHH.MM
TEMPERATURE-20 C to +90 C
Quick answer
What is the Xhour vibration hour meter?
Xhour is a self-powered digital vibration hour meter that detects when an engine or machine is operating and records accumulated runtime automatically. It needs no machine wiring or external power connection.
Equipment owners use the recorded hours to plan preventive maintenance, document fleet usage, monitor machine activity, and support usage-based rental billing.

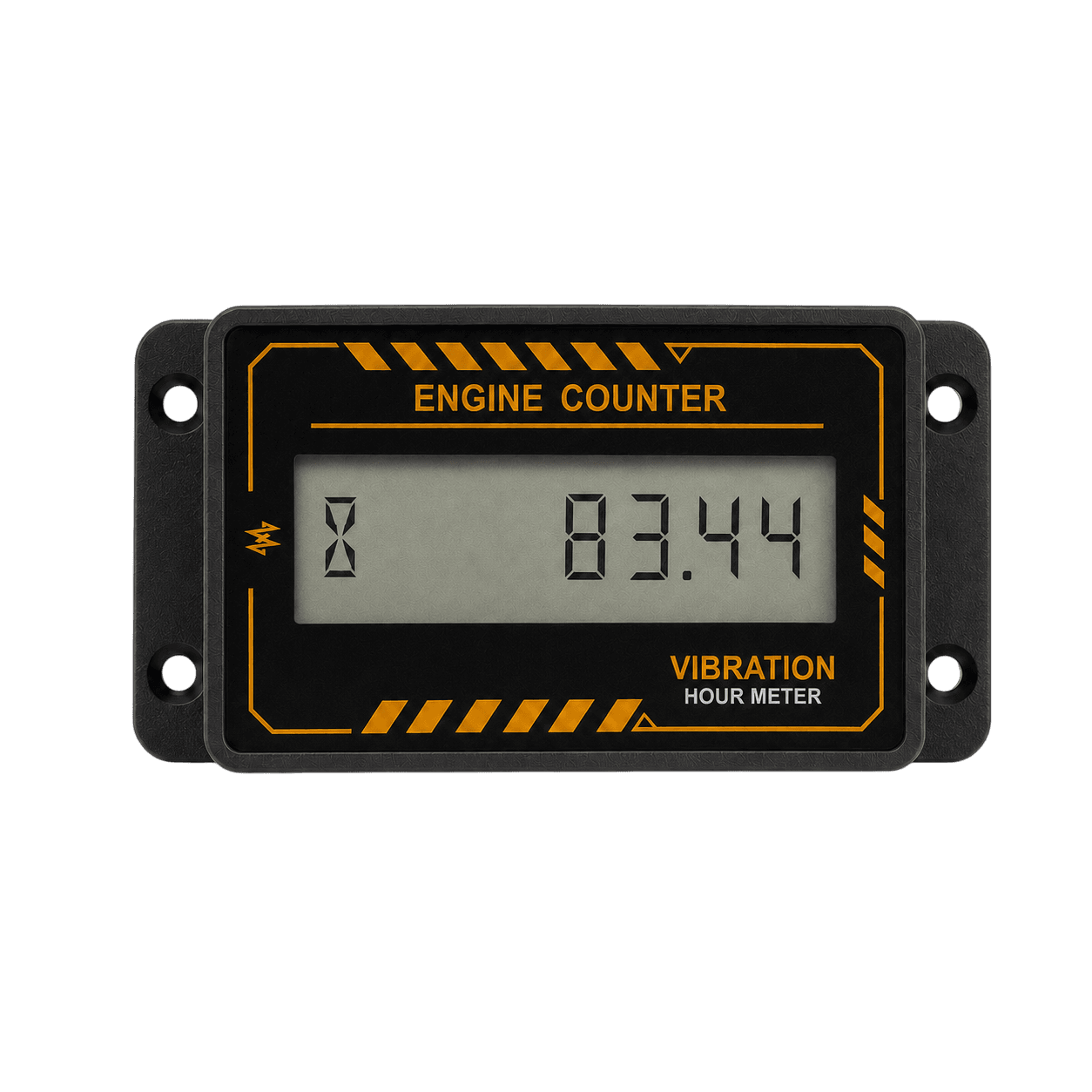

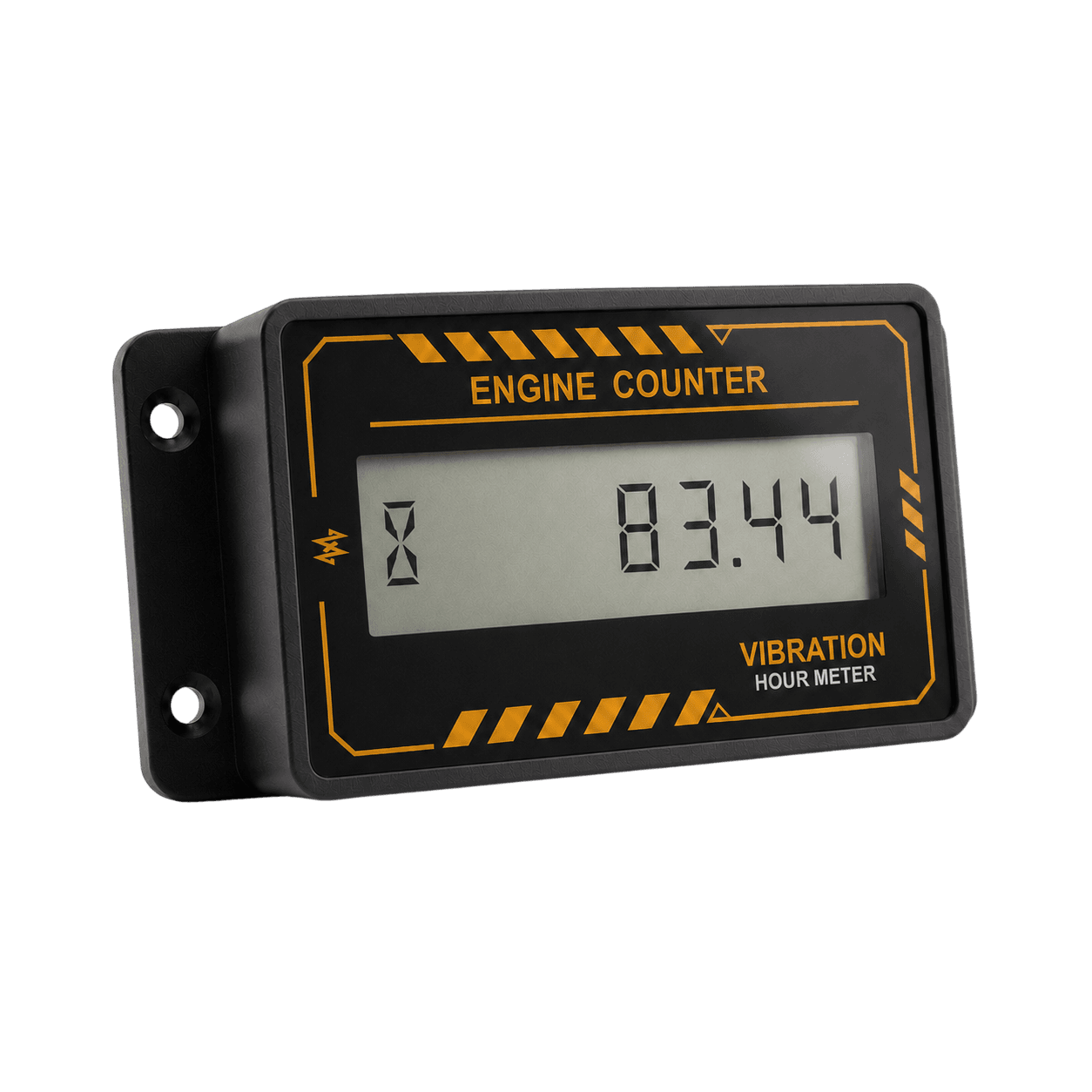

Product views
Compact hardware.
Clear information.
A high-contrast LCD, sealed internal battery, and practical four-point mounting make Xhour easy to add to working equipment.
How Xhour works
Fit it. Run it. Know it.
Xhour turns vibration into a useful operating-time record through a simple, automatic workflow designed for real equipment.
Sense
The meter activates automatically when the machine produces vibration above its detection threshold.
Track
Validated activity is added to the LCD runtime record for maintenance, monitoring, and billing.
SMART COUNTING LOGIC
Designed to count operation, not a single knock.
- 01
The first vibration pulse above approximately 64 mg opens a 5-second verification window.
- 02
A confirming pulse within that window validates activity and credits the first 5 seconds.
- 03
Counting stops after two consecutive 5-second windows without vibration, about 10 seconds after the final pulse.
Product specification
Built for everyday industrial use.
The sealed, shock-resistant enclosure is designed for dust, moisture, heat, and mechanical stress while keeping installation simple.
WATER & DUST RESISTANTMAINTENANCE-FREE OPERATION
- Dimensions
- 80 x 38 x 22 mm
- Power
- Built-in battery
- Battery life
- 1-3 years, application-dependent
- Detection
- Vibration sensor
- Display format
- HHHHH.MM
- Operating temperature
- -20 C to +90 C
- Enclosure
- ABS plastic
- Mounting
- Adhesive or screws
Direct comparison
Vibration hour meter vs. traditional hour meter.
Xhour records the same essential operating-hour metric while avoiding an electrical connection to the machine.
| Factor | Traditional meter | Xhour |
|---|---|---|
| Machine connection | Requires electrical wiring | No machine wiring |
| Activation | Ignition or external signal | Machine vibration |
| Power source | Machine or external power | Built-in battery |
| Installation | Electrical installation | Adhesive or screw mounting |
| Runtime purpose | Operating-hour record | Operating-hour record |
HUsage translated
into useful hours
into useful hours
Why runtime matters
Make maintenance more predictable.
Calendar-based servicing can miss how lightly or heavily a machine is actually used. Runtime records add practical context.
- Plan service by useBase inspections and maintenance on operating time.
- Support usage billingKeep a clear runtime reference for rented equipment.
- Improve fleet visibilityCompare usage across machines, tools, or locations.
Applications
One clear metric.
Many working machines.
Xhour is suitable for equipment that produces consistent vibration while operating.
Generators
Track generator operating time without ignition wiring. Learn how Xhour supports runtime-based service, rental records, and backup generator maintenance.
View applicationTractors
Record tractor operating hours without electrical wiring. Use Xhour for seasonal maintenance records, fleet visibility, and retrofit runtime tracking.
View applicationWater pumps
Measure engine-driven water pump runtime without control-panel wiring. Xhour supports irrigation, dewatering, rental, and pump maintenance records.
View applicationCompressors
Track compressor runtime from machine vibration without control wiring. Use operating hours for service records, fleet checks, and retrofit monitoring.
View applicationConstruction equipment
Add no-wiring runtime tracking to generators, mixers, loaders, compactors, and other construction equipment with the Xhour vibration hour meter.
View applicationRental equipment
Use Xhour to record rental equipment runtime for handovers, maintenance scheduling, utilization checks, and usage-based billing references.
View applicationXhour knowledge centre
Choose, install, and use an hour meter correctly.
Technical explanations written to help equipment owners, maintenance teams, rental fleets, distributors, and OEM buyers.
MANUFACTURER & OEM
Vibration hour meter manufacturer in India
OEM and private-label Xhour supply from Savaliya Technology in Surat, Gujarat.
Discuss OEM supply TECHNICAL GUIDEHow vibration hour meters work
Learn how a vibration hour meter detects machine operation, validates vibration, records runtime, and stops counting after the machine becomes inactive.
Read guide TECHNICAL GUIDEInstallation guide
Follow a practical process to choose a vibration-active location, mount Xhour securely, verify detection, and document the initial runtime reading.
Read guide TECHNICAL GUIDEVibration vs wired meter
Compare vibration-activated and traditional wired hour meters by activation method, installation, power source, retrofit suitability, and application fit.
Read guide TECHNICAL GUIDEPreventive maintenance
Build a practical hour-based preventive maintenance process using machine runtime records, service intervals, inspections, and a consistent equipment log.
Read guideMeet the Xhour founders.
Xhour brings together electronics engineering and application-focused product support.
CO-FOUNDER
Ashish Savaliya
CO-FOUNDER & PRODUCT CONTACT
Vivek Nakrani
Common questions
The useful details.
Need model-specific information? Vivek can help match Xhour to your application.
What is the Xhour vibration hour meter?+
Xhour is a self-powered digital vibration hour meter that detects machine vibration and records accumulated operating time. It provides runtime records for preventive maintenance, equipment monitoring, fleet records, and usage-based billing without connecting to machine wiring.
Does Xhour need machine wiring or external power?+
No. Xhour uses a sealed built-in battery and detects machine operation through vibration. Standard installation does not require a connection to the ignition, electrical system, or an external power source.
Does Xhour transmit runtime information wirelessly?+
No. Xhour is self-powered and needs no machine wiring, but it does not transmit information wirelessly. Accumulated runtime is shown on the digital display.
How does Xhour decide when to count runtime?+
A first vibration pulse above approximately 64 mg opens a 5-second verification window. A confirming pulse validates activity and credits the first 5 seconds. Counting stops after two consecutive 5-second windows without vibration, approximately 10 seconds after the final pulse.
What equipment can use a vibration hour meter?+
Typical applications include generators, water pumps, compressors, tractors, harvesters, construction machines, rental equipment, trucks, diesel engines, motors, conveyors, and other equipment that produces consistent vibration while operating.
How is Xhour installed?+
Clean a vibration-active mounting surface, secure Xhour with suitable adhesive or screws, and start the machine to confirm detection. The selected location must transfer normal operating vibration to the meter.
What are the battery life and operating temperature?+
The built-in battery is specified for 1 to 3 years of application-dependent life. The specified operating temperature range is -20 C to +90 C.
Does Xhour require regular maintenance?+
No regular maintenance or calibration is required. Keep the meter securely mounted and avoid placing it on a surface that does not transfer machine vibration.
